LED Panel Light
Created with Pixso. 6500lm 1200mm X 300mm Led Panel Led Rectangular 120 X 30 Customized

6500lm 1200mm X 300mm Led Panel Led Rectangular 120 X 30 Customized

Brand Name: LEDs-LUX
Model Number: LL-SLP-300X1200
MOQ: 100PCS
Price: USD100-200/pc
Delivery Time: 20 workdays
Payment Terms: T/T
Detail Information
Place of Origin:
Dongguang,China
Material:
Aluminium
LED Qty:
192leds/m
Size:
300X1200mm
Input Voltage:
90-277V,50/60Hz
Led Type:
SMD5630,0.2-0.5W
Wattage:
57.6W/M
Shape:
Square Shape,round Shape
Ip Rating:
IP20
Warranty:
3 Years
Surface Color:
Customized
Dim:
0/1-10V,DALI
Lumen:
6500lm
Output Current:
1600mA
Packaging Details:
carton
Supply Ability:
2000pcs/month
Highlight:

1200mm X 300mm Led Panel

,

Panel Led Rectangular 120 X 30

,

6500lm 1200mm led panel

Product Description

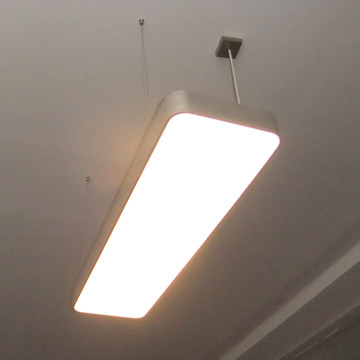

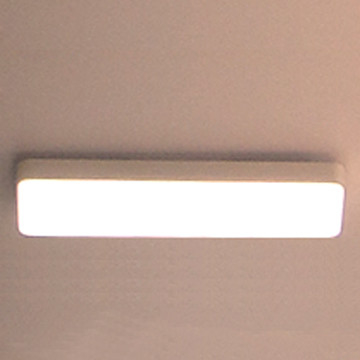

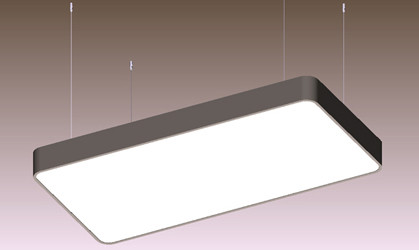

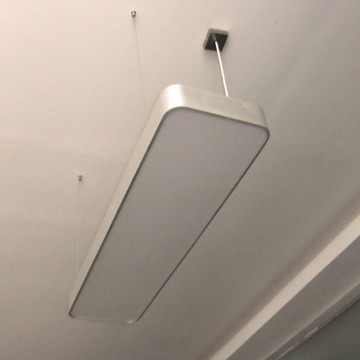

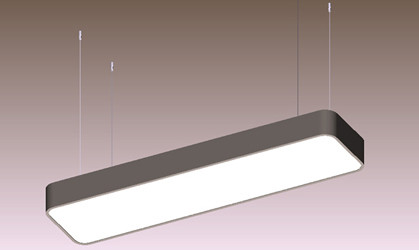

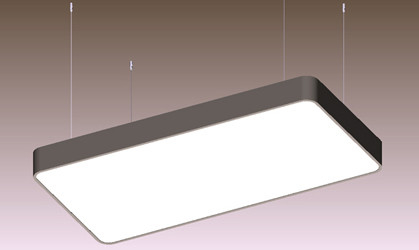

Suspension Rectange LED Panel Light------Diffuser Fixed Type

Aluminium Type LED Panel Light Square Lamp Hanging Easy Installation Suspension Light



Rolling Aluminium Profile

Spinning or CNC cut Aluminium Backplate

CNC cut PC/PMMA Diffuser

Diffuser fixed by aluminium clips

Osram/Samsung SMD LED with LM80

Kelvin:2700-3500k,4000-4500k,5000-6500k

Color bin in 3steps/5steps,CRI>80/CRI>90

Osram/Tridonic/Meanwell LED Driver

Downlight only/Uplight&Downlight

Dimming(PWM/0/1-10V/DALI) and kelvin Changing

3/5 years warranty

Size:SLP-S300X600/600X900/300X1200/600X1200-H75/105

6500lm 1200mm X 300mm Led Panel Led Rectangular 120 X 30 Customized 06500lm 1200mm X 300mm Led Panel Led Rectangular 120 X 30 Customized 1

6500lm 1200mm X 300mm Led Panel Led Rectangular 120 X 30 Customized 26500lm 1200mm X 300mm Led Panel Led Rectangular 120 X 30 Customized 36500lm 1200mm X 300mm Led Panel Led Rectangular 120 X 30 Customized 4

What's we can do:

A.Project and Customer Design Solution

B.Product design and developing

C.Aluminium Profile and Extrusion Mold design

D.LED Light Source and PCBA design

E.LED Driver & Dimming solution

F.Light Effect and Configuration



What's we are doing:

A.CNC and Laser Cut for Backplate and Diffuser

B.CNC Rolling,Bending & Spinning for Housing

C.Assembly Production,Online Test and Aging Test

D.Quality Control,Safety test and Final Check

E.Internaional Shipping and Transport

F.Installation Guide and Technical Support



FAQ

Q1: Can I get some samples?

A: Yes, sample order is available for quality check and market test. But you have to pay the sample cost and express cost.


Q2: Do you receive customized order?

A: Yes, ODM & OEM are welcomed.


Q3: What's the lead time?

A: According to the order quantity, small order usually need 10-15 workdays, big order need negotiation.


Q4: What's your warranty terms?

A: We supply 3years warranty time.
