Customized LED Light
Created with Pixso. Irregular Figure Type Led Ring Ceiling Lights 260W Circle Led Hanging Light

Irregular Figure Type Led Ring Ceiling Lights 260W Circle Led Hanging Light

Brand Name: LEDs-LUX
Model Number: LLA-CR3600XH105
MOQ: 100PCS
Price: USD50-200/pc
Delivery Time: 20 workdays
Payment Terms: T/T
Detail Information
Place of Origin:
Dongguang,China
Material:
Aluminium
LED Qty:
648leds/m
Size:
CR3600X105mm
Input Voltage:
90-277V,50/60Hz
Led Type:
SMD5630,0.2-0.5W
Wattage:
260W
Shape:
Irregular Figure Shape
Ip Rating:
IP20
Warranty:
3 Years
Surface Color:
Customized
Dim:
0/1-10V,DALI
Lumens:
27994lm
Output Current:
3X2250mA
Packaging Details:
carton
Supply Ability:
2000pcs/month
Highlight:

Irregular Led Ring Ceiling Lights

,

Led Ring Ceiling Lights 260W

,

260W Circle Led Hanging Light

Product Description

Super Size LED Curve Light For MTR------End User Assembly Type

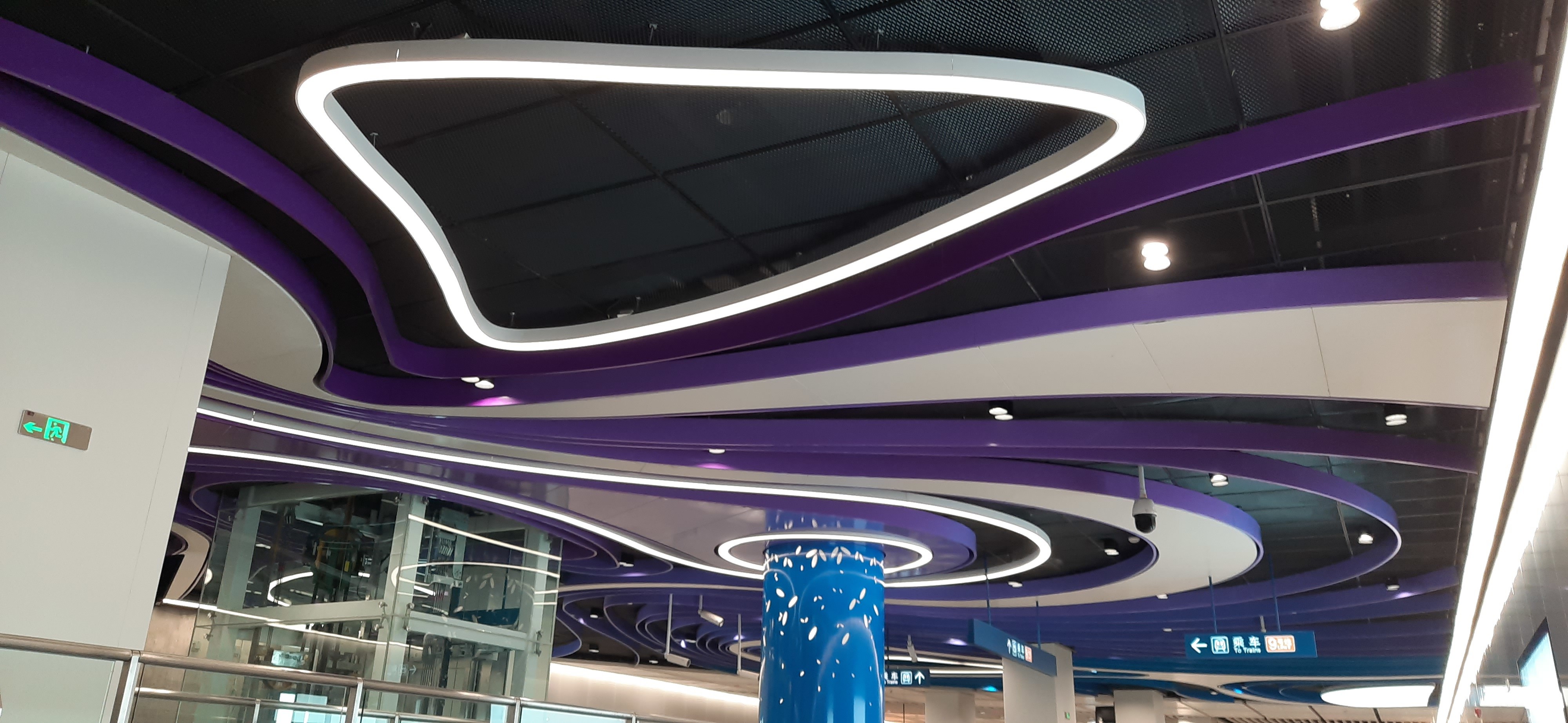

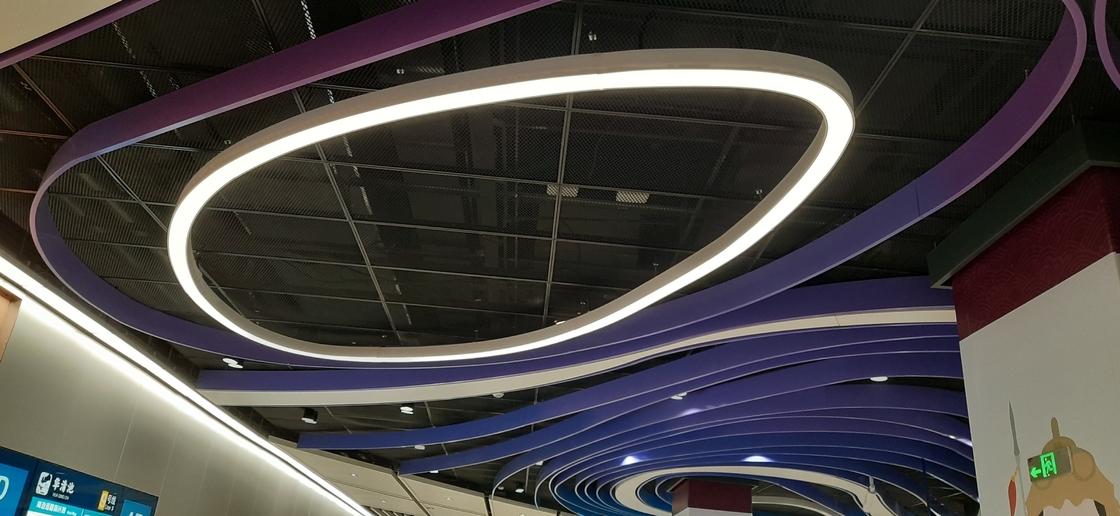

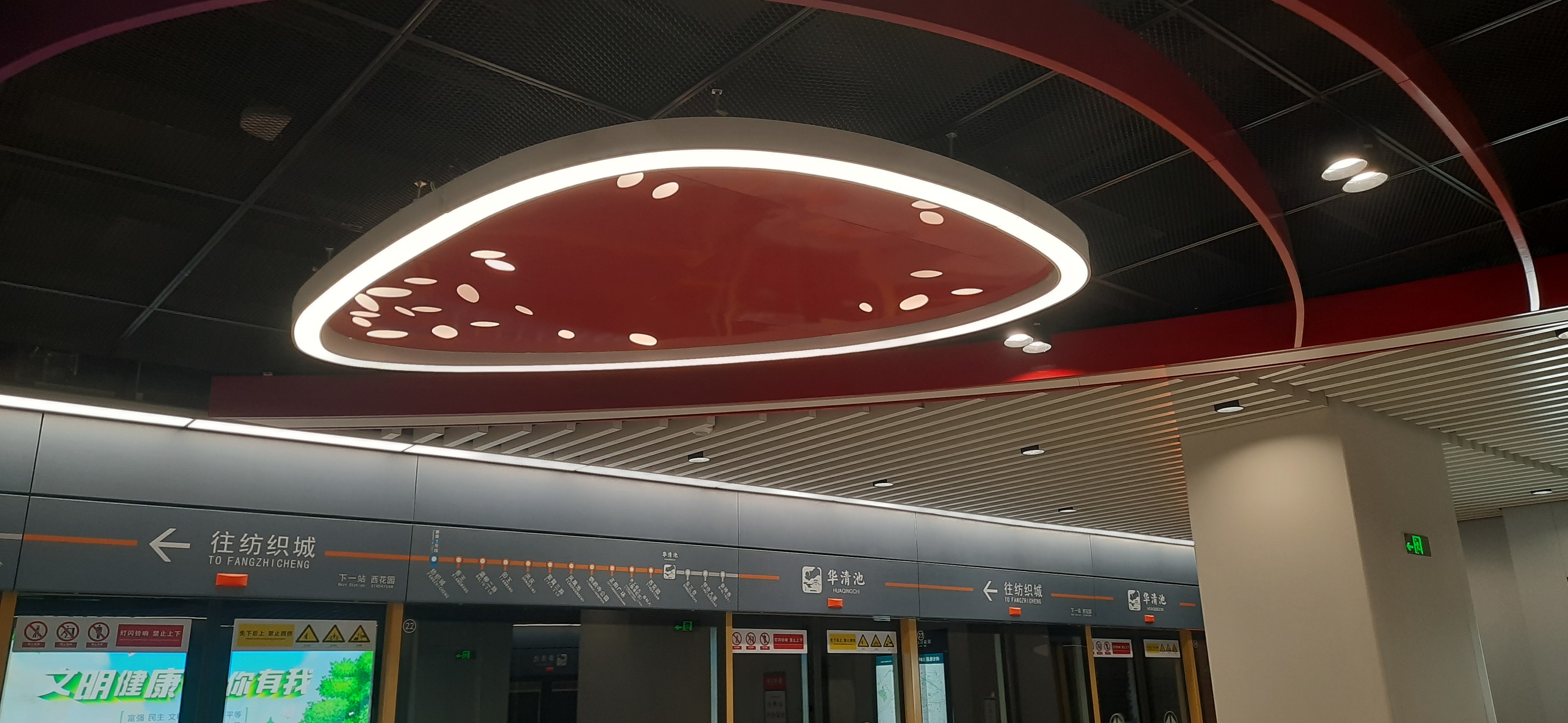

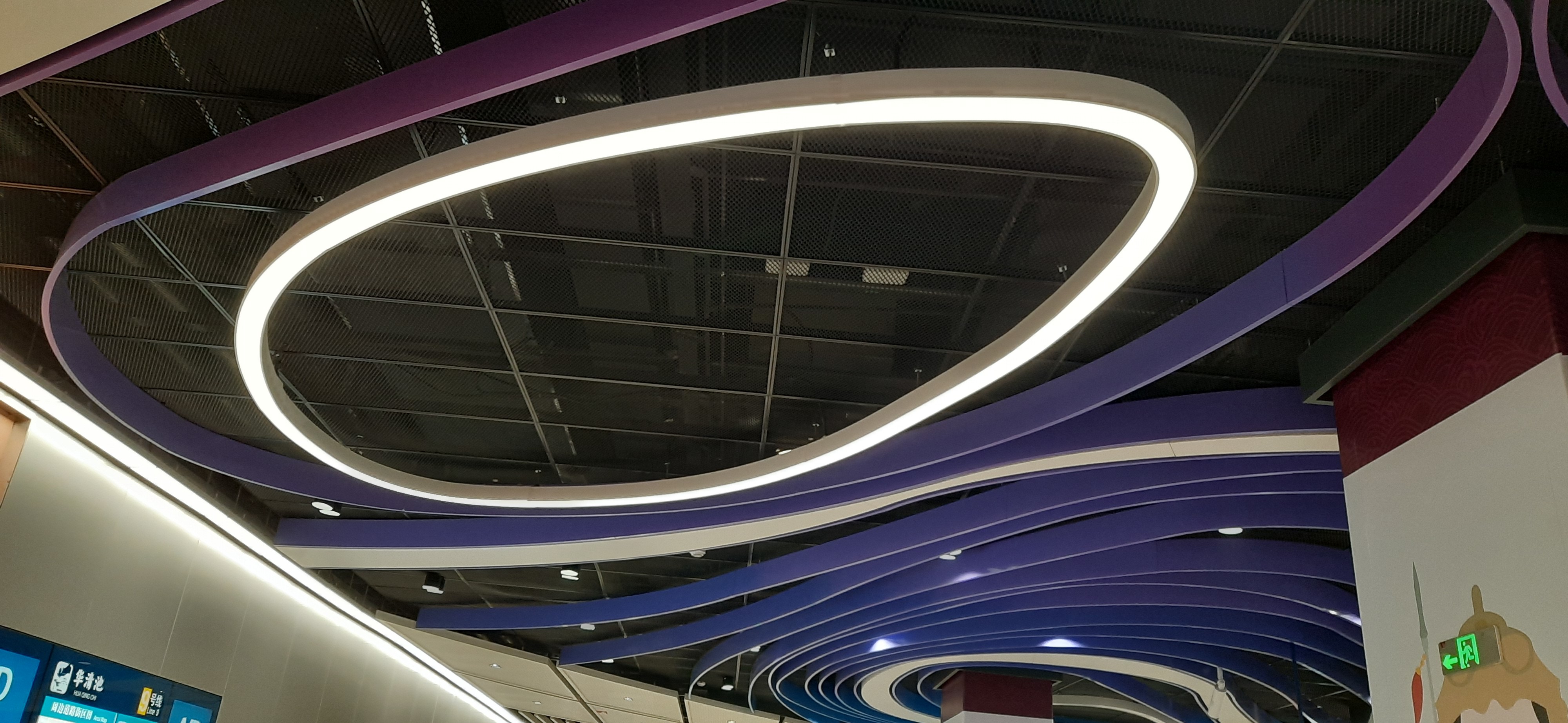

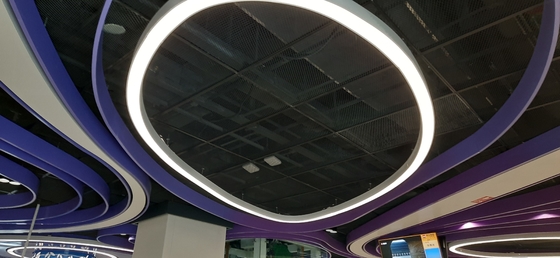

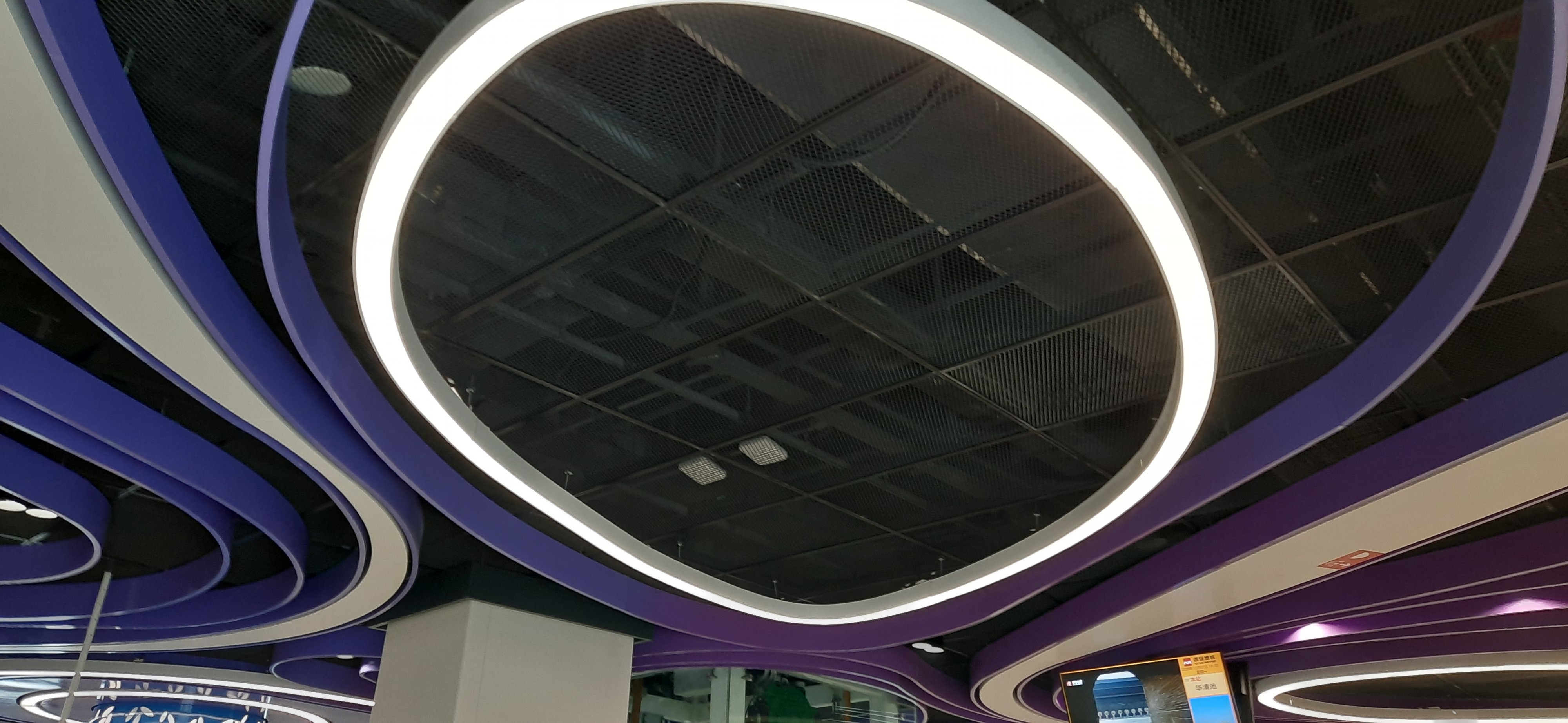

Super Size Assembly Irregular Figure Type Led Linear Ring Light Surface Color Customized Use For Metro And Shopping Mall



Rolling Aluminium Profile

CNC cut  Aluminium backplate

CNC cut PC/PMMA diffuser with UL95-V0 or UL92-V2

End User Assembly type for Metro-Station or public use

Osram/Samsung High Power SMD LED with LM80

Kelvin:2700-3500k,4000-4500k,5000-6500k

Color bin in 3steps/5steps,CRI>80/CRI>90

Osram/Tridonic/Meanwell LED Driver,Built-in LED Driver

Downlight only

Dimming(PWM/0/1-10V/DALI) and double kelvin

3/5 years warranty

Size:LLA-CRdia-W60/75/90/100/120/150XH75

        LLA-CRdia-W75/90/100/120/150/200XH105

CRdia=1500,1600,1800,2000,2400,3000,3600,4800,6000,7200,9000,12000mm different segments combine.

Irregular Figure Type Led Ring Ceiling Lights 260W Circle Led Hanging Light 0



Irregular Figure Type Led Ring Ceiling Lights 260W Circle Led Hanging Light 1Irregular Figure Type Led Ring Ceiling Lights 260W Circle Led Hanging Light 2

Irregular Figure Type Led Ring Ceiling Lights 260W Circle Led Hanging Light 3Irregular Figure Type Led Ring Ceiling Lights 260W Circle Led Hanging Light 4Irregular Figure Type Led Ring Ceiling Lights 260W Circle Led Hanging Light 5



Want to see more relate project,pls check our news..........



What's we can do:

A.Project and Customer Design Solution

B.Product design and developing

C.Aluminium Profile and Extrusion Mold design

D.LED Light Source and PCBA design

E.LED Driver & Dimming solution

F.Light Effect and Configuration



What's we are doing:

A.CNC and Laser Cut for Backplate and Diffuser

B.CNC Rolling,Bending & Spinning for Housing

C.Assembly Production,Online Test and Aging Test

D.Quality Control,Safety test and Final Check

E.Internaional Shipping and Transport

F.Installation Guide and Technical Support



FAQ

Q1: Can I get some samples?

A: Yes, sample order is available for quality check and market test. But you have to pay the sample cost and express cost.


Q2: Do you receive customized order?

A: Yes, ODM & OEM are welcomed.


Q3: What's the lead time?

A: According to the order quantity, small order usually need 10-15 workdays, big order need negotiation.


Q4: What's your warranty terms?

A: We supply 3years warranty time.
